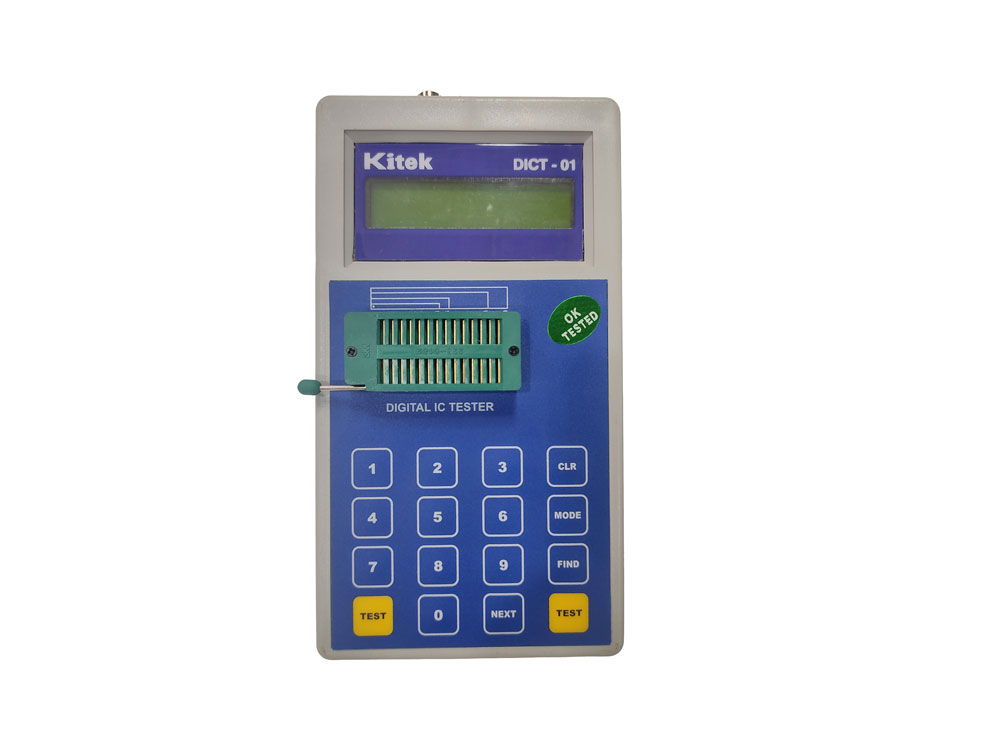

DICT-01 DIGITAL IC TESTER
|
-
Piggy Bag Modules
-
It can test more than 300+ ICs
-
It tests a wide range of Digital IC's
such as 74 Series, 40/45 Series of CMOS ICs up to 24 pins in DIP
package.
-
IC Type: Tristate, open collector &
bidirectional ICs.
-
Test by: Truth table/sequence table
comparison.
-
ZIF: 24 pin DIP ZIF sockets.
-
Keys: 16 keys.
-
Display: 16 x 1 line LCD display.
-
Supply Voltage: 230V AC.
|
`
|

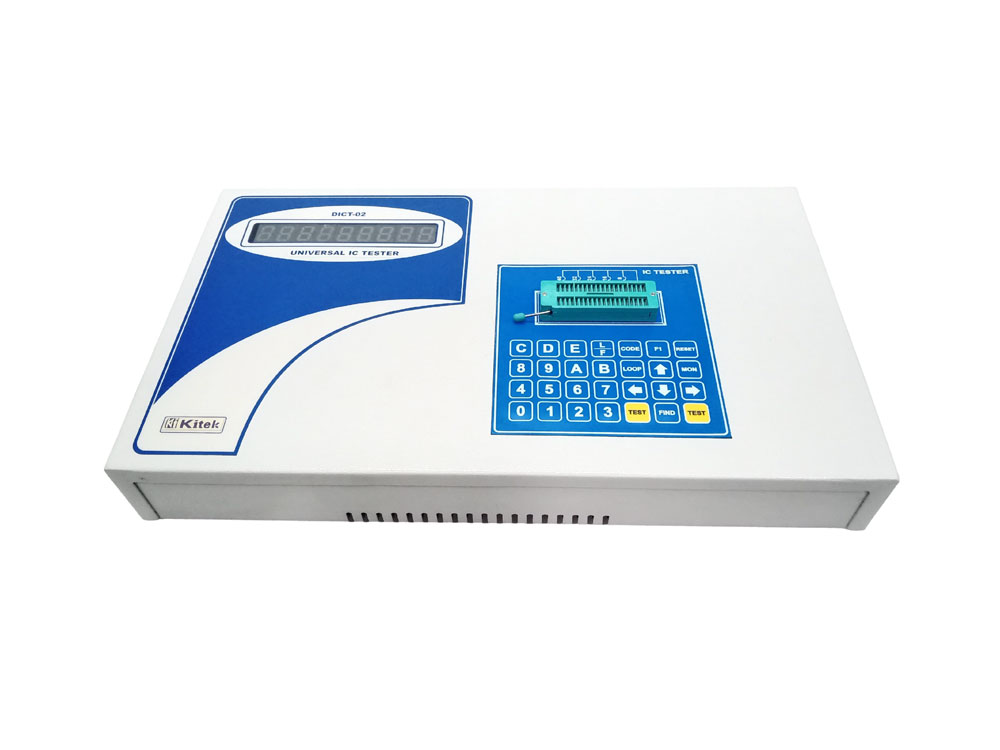

DICT-02 UNIVERSAL IC TESTER
|
-
It can test more than 600+ ICs
-
Tests a wide range of Digital IC's such
as 74 Series, 40/45 Series of CMOS ICs
-
It can test Micro- processor 8085, 8086,
Z80, 8051, 89c51
-
It tests Peripherals like 8255, 8279,
8253, 8259, 8251, 8155, 6264, 62256, 8288, 8284
-
It tests Op-amp, 555, Transistor Arrays,
Analog switches, Opto couplers and Others
-
It tests Seven segment display of common
cathode & common anode type
-
It has Auto search facility of all
Digital ICs Keys: 16 keys.
-
Test by: Truth table/sequence table
comparison.
-
ZIF: 40 pin DIP ZIF sockets.
-
Keys: 28 cherry keys Key pad with
numerical & functional keys.
-
Display: 9 Digit Seven Segment Display.
-
Supply Input Voltage: 230V AC.
|
|

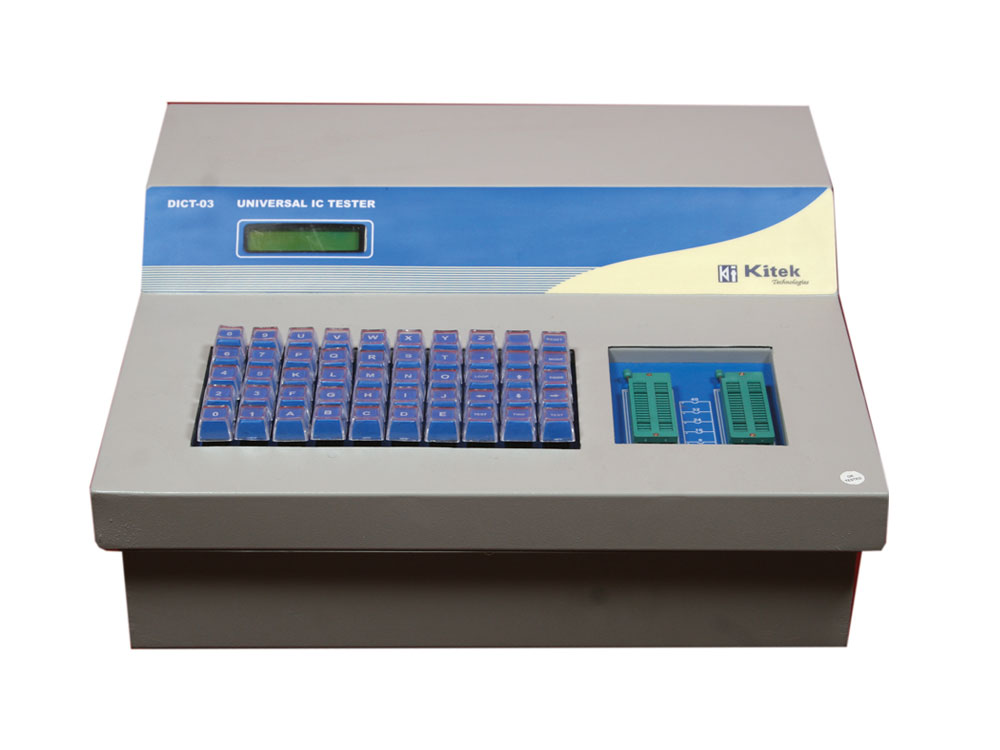

DICT-03 UNIVERSAL IC TESTER
|
-
It can test more than 1500+ ICs
-
Tests a wide range of Digital IC's such
as 74 Series, 40/45 Series of CMOS ICs Tests a wide range of
Digital IC's such as 74 Series, 40/45 Series of CMOS ICs
-
It can test Micro- processor 8085, 8086,
Z80, 8051, 89c51
-
It tests Peripherals like 8255, 8279,
8253, 8259, 8251, 8155, 6264, 62256, 8288, 8284
-
Tests a wide range of Analog IC's such
Op-amp, 555 Timers
-
Tests a wide range of Transistor Arrays,
Analog switches
-
Tests a wide range of Opto- couplers
-
Tests a wide range of ADC, DAC,
Comparators
-
Tests a wide range of Waveform generator,
PWM IC, Sample Hold IC
-
Tests a wide range of Voltage Regulator,
DPM IC
-
Tests a wide range of Frequency to
Voltage converter
-
Tests a wide range of Latch driver, VCO
Ic’s, PLL Ic’sCross Point Switch
-
It tests Seven segment display of common
cathode & common anode type
-
It has Auto search facility of all
Digital ICs
-
Test by: Truth table/sequence table
comparison.
-
ZIF: 40 pin DIP ZIF sockets.
-
Keys: 50 cherry keys Key pad with
numerical & functional keys.
-
Display: 16 X 2 LCD Display.
-
Supply Input Voltage: 230V AC.
|
|

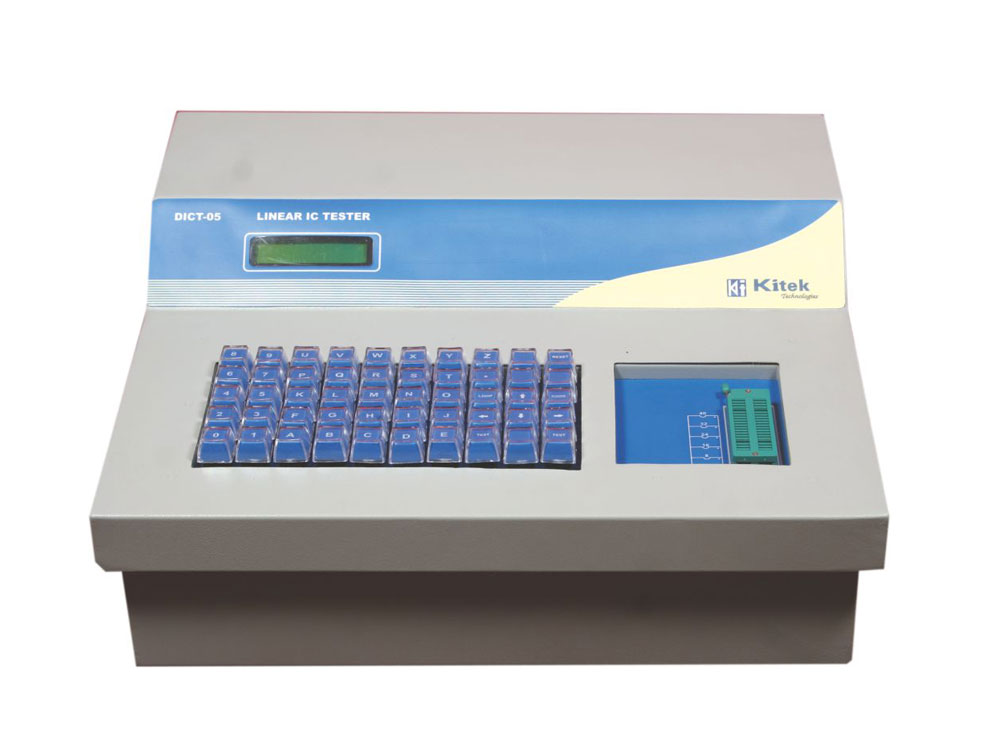

DICT-05 LINEAR IC TESTER
|
-
It can test more than 600+ ICs
-
Tests a wide range of Analog IC's such
Op-amp, 555 Timers
-
Tests a wide range of Transistor Arrays,
Analog switches
-
Tests a wide range of Opto- couplers
-
Tests a wide range of ADC, DAC,
Comparators
-
Tests a wide range of Waveform generator,
PWM IC, Sample Hold IC
-
Tests a wide range of Voltage Regulator,
DPM IC
-
Tests a wide range of Frequency to
Voltage converter
-
Tests a wide range of Latch driver, VCO
Ic, PLL IcsCross Point Switch
-
Test by: Truth table/sequence table
comparison.
-
ZIF: 40 pin DIP ZIF sockets.
-
Keys: 50 cherry keys Key pad with
numerical & functional keys.
-
Display: 16 X 2 LCD Display.
-
Supply Input Voltage: 230V AC.
|
|
